CLASSIC-LINE SQ electric top-loader up to 1,350 °C or 1,380 °C

KITTEC is the first manufacturer worldwide to offer square kilns without the heavy, bulky steel frame. These kilns are therefore very easy to transport, since they will fit through any door opening of 50 cm or more. With the SQ model series, you also have the possibility of extending it with an extension ring.

Features of SQ model series kilns

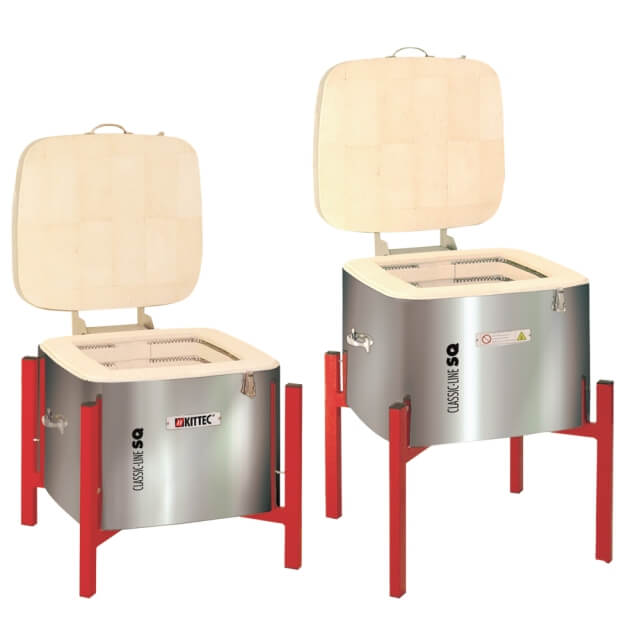

Reversible base for two possible working heights

Gas pressure spring support for easier lid opening (from SQ 90 upwards)

Wide lid opening angle (> 90°) for easy loading

Heating elements protected in grooves

Lid prop for accelerated cooling phases

More special features of the SQ model series:

Powder-coated base – in your choice of one of five colours
Stainless steel fastening clamps, welded on – rust-proof and easy moving
Two-layer insulation: Lightweight refractory brick + high-quality, ceramic fibre-free insulation
Continuous mortar-free brick lining reduces cracking
Exhaust cowl at right-hand side, protected from condensation
Lid lock (with lockable eyelet)
Useful handles for secure and quick transport

Variants of the SQ model series:

SQ Plus models, in addition to the lightweight refractory brick, also contain high-quality and innovative premium insulation in the sides and the base.
SQ S models are constructed for high current operation.
SQ extension rings (with their own heating elements) make it possible to extend certain SQ models to have bigger firing chambers.

Optionally available:

Extension rings to increase volume

Lid heating

Hearth heating

Various controllers available

Inspection hole (including bung)

ESP Energy Saving Package

Sustainable energy-saving package NewGen ESP

Other available options:

Solid state semiconductor relay (noiseless)
An electronic semiconductor relay is used instead of the electric contactor, and makes noiseless switching procedures possible during firing.
Extended maximum temperature 1,350 °C or 1,380 °C
Hearth air inlet slide valve
Transport castors (2 of the 4 castors have a locking brake)
Exhaust air opening on the left instead of on the right
Flexible exhaust pipe
Levelling feet for compensating for floor unevenness

Additional capacity with extension rings

The KITTEC CLASSIC-LINE extension rings (with own heating elements) for the CB and SQ model series bring additional volume and therefore more space and flexibility. In this way, extending a SQ 90 S to a SQ 140 S provides additional volume of 50 l. The divisibility of these extendible or extended models makes transport through the narrowest of door openings possible (from door width of 50 cm). The extension rings are currently available for the following CLASSIC-LINE SQ kilns: SQ 90 S and SQ 150 S.

KITTEC CLASSIC-LINE model series SQ

Modell	Form	Firing chamber width [mm]	Firing chamber depth [mm]	Firing chamber height [mm]	Volume [l]	External width [mm]	External depth [mm]	External height incl. base [mm]	Max. temperature [°C]	Power [kW]	Voltage [V]	Current [A]	Weight [kg]
SQ 11	square	220	220	230	11	475	560	550	1320	2,4	230 N~	11	40
SQ 50 PLUS	square	380	380	340	52	670	770	660	1280±30	3,6	230 N~	16	85
SQ 50 Double	square	380	380	340	52	690	780	660	1320	3,6	230 N~	16	90
SQ 70 PLUS	square	380	380	460	70	670	770	780	1200±30	3,6	230 N~	16	100
SQ 70 Double	square	380	380	460	70	690	780	780	1250±30	3,6	230 N~	16	105
SQ 70 S	square	380	380	460	70	670	770	780	1320	5,6	400 2N~	2x12 CEE16	90
SQ 90 S	square	450	450	460	97	730	810	780	1320	7,2	400 2N~	2x16 CEE16	110
Extension ring f SQ 90 S	square	450	450	230	48	730	810	230	1320	3,8	-	-	23
SQ 140 S	square	450	450	690	145	730	810	1010	1320	11	400 3N~	3x16 CEE16	130
SQ 150 S	square	560	560	460	153	840	930	780	1320	12	400 3N~	3x26 CEE32	140
Extension ring f SQ 150 S	square	560	560	230	76	840	930	230	1320	6	-	-	28

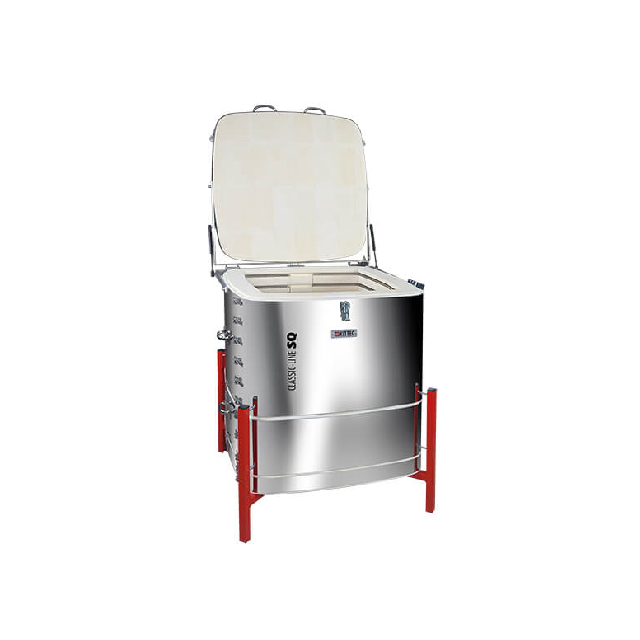

SQ 220 S	square	560	560	690	229	840	930	1010	1320	18	400 3N~	3x26 CEE32	170
SQ 165 S	rectangular	780	450	460	165	980	790	780	1320	11	400 3N~	3x16 CEE16	165
SQ 235 S	rectangular	780	560	535	235	980	900	850	1320	16	400 3N~	3x24 CEE32	190
SQ 350 S	rectangular	890	560	690	350	1090	900	1010	1320	20	400 3N~	3x29 CEE32	225
SQ 390 S	rectangular	890	560	765	390	1090	900	1080	1320	22	400 3N~	3x32 CEE32	240

All data subject to technical change without notice.

Appropriate firing sets, tools and additional equipment to KITTEC CLASSIC-LINE kilns are available here. Should you have questions about this model series or wish to get more information or customized advice, please feel free to contact us. We will get back to you shortly.
