kittec newgen esp
Fast to perfect temperatures.
Faster to perfect firing results.
Our kilns now feature innovative foam ceramic bricks in the KITTEC NewGen ESP energy-saving package.
With our KITTEC NewGen ESP energy-saving package, we use a completely new type of refractory lining with innovative foam ceramic bricks in addition to the usual high-quality multi-layer premium insulation and an insulating plate installed underneath the bottom. Our KITTEC NewGen ESP energy-saving package is available for all new KITTEC kilns – contact us!
Faster heating and cooling phases
Shortened cycle times
Lower energy consumption
Reduced wear of the heating coils
Lower kiln weight
Free of ceramic fibers (no healt hazard)
Sustainable production
Quick return on investment
A revolution in kiln construction

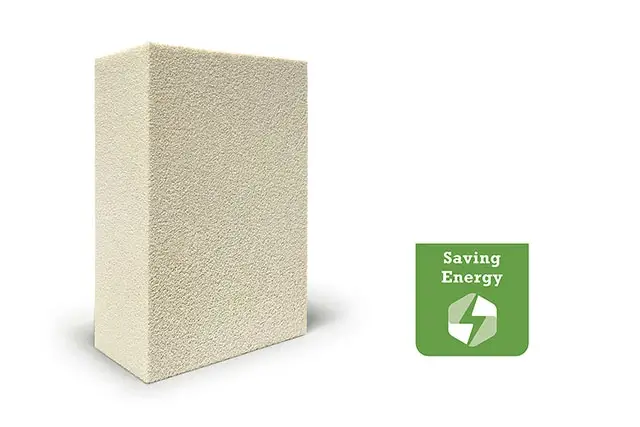

The foam ceramic bricks store significantly less heat than a conventional lining, while still providing a comparable insulating effect.
The significant benefit: You heat the kiln – and not just the bricks. Firing not only becomes much faster. It also requires less energy. For your company, this means shortened firing cycles thanks to reduced heating and cooling times, as well as lower electricity costs.

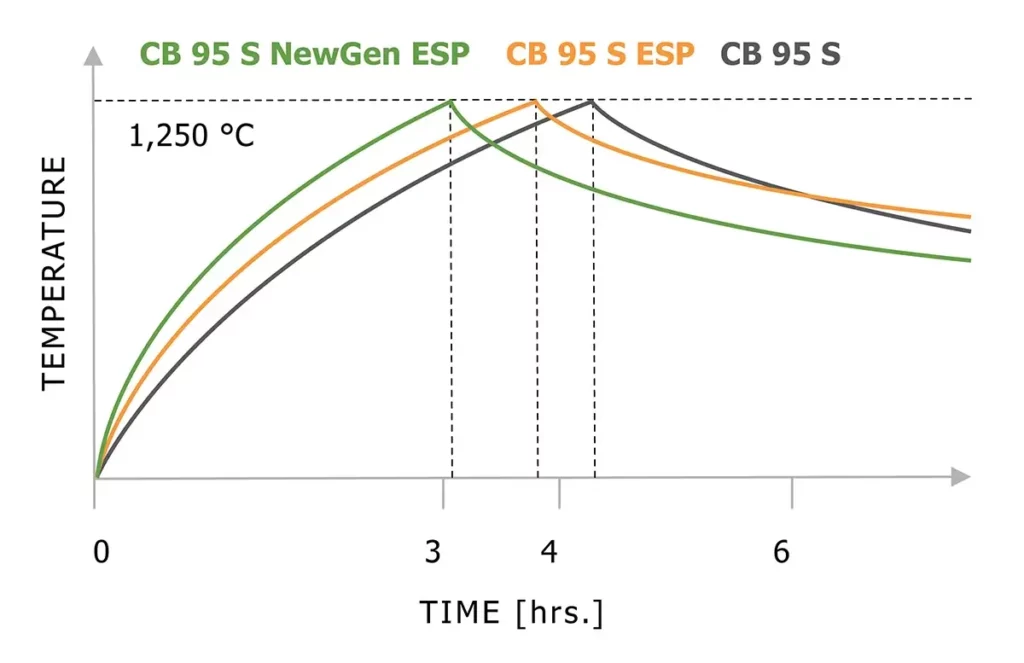

Our test shows: A CB 95 S NewGen ESP reached 1,250 °C in about 3 hours, compared to 3.75 hours for the CB 95 S ESP and 4.25 hours for the Standard CB 95 S, resulting in significant electricity savings.
Extremely sustainable
Our bricks are 100 % recyclable and can be reused as raw material to produce new foam ceramic bricks, again and again. Thanks to local production in Central Europe, transport distances are significantly shorter.
KITTEC’s new kiln lining is optionally available for various kiln models:
The KITTEC PROFESSIONAL-LINE model series:
- STUDIO-LINE ECO – Top-loading kilns
- STUDIO-LINE CBN – Front-loading kilns
- CLASSIC-LINE CB – Electric top-loading kilns up to 1,320°C
- CLASSIC-LINE SQ – Electric top-loading kilns up to 1,320°C
- CLASSIC-LINE CBF/SQF – Electric top-loading fusing kilns up to 1,000°C
- CLASSIC-LINE CL – Electric front-loading kilns up to 1,320°C with heating elements in grooves
- CLASSIC-LINE CT – Electric front-loading kilns up to 1,320°C with heating elements on support bars
KITTEC NewGen ESP is a standard feature for various kiln models:
- PROFESSIONAL-LINE X – Stainless steel electric top-loaders up to 1,320 °C
- PROFESSIONAL-LINE XR – Stainless steel electric front-loaders up to 1,320 °C (heating coils in grooved bricks)
- PROFESSIONAL-LINE XT – Stainless steel electric front-loaders up to 1,320 °C (heating coils on support bars)
- INDUSTRIAL-LINE XRS / XTS – Electric front-loaders with drawer mechanism up to 1.320°C
NewGen ESP is optionally available for all further electric kiln models.
Our top-loader kilns are reinforced with the more robust 26-type refractory brick at the upper edge of the body.
